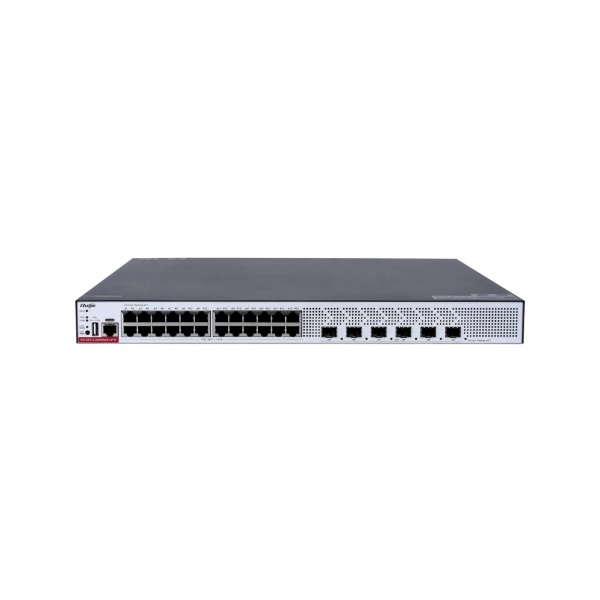

24-Port Gigabit Ruijie Switch With 10G Uplink Layer 3 Routing RG-S5315-24MG6XS-UP-E

Name: 24Port Gigabit Ruijie Switch With 10G Uplink Layer 3 Routing RGS531524MG6XSUPE
Brand: Ruijie
Price: 1 USD

Cheap 24-Port Gigabit Ruijie Switch With 10G Uplink Layer 3 Routing RG-S5315-24MG6XS-UP-E for sale

Brand Name : Ruijie

Model Number : RG-S5315-24MG6XS-UP-E

Power Consumption : Max. 60W

Weight : 4.5kg

Dimensions : 440mm x 44mm x 310mm

Redundancy Protocols : STP, RSTP, MSTP

Qos Support : Yes

Management Interface : Web, CLI, SNMP

Number Of Ports : 48

Forwarding Rate : 130.95Mpps

Model : RG-S5750E

Security Features : MAC address filtering, port security, 802.1X authentication

Port Type : 10/100/1000Base-T

Vlan Support : Yes

Switching Capacity : 176Gbps

Power Supply : AC 100-240V

Contact Now

24-Port Gigabit Ruijie Switch With 10G Uplink & Layer 3 Routing RG-S5315-24MG6XS-UP-E

The Ruijie RG-S5315-24MG6XS-UP-E is a high-performance managed Gigabit switch designed for enterprise networks, data centers, and high-bandwidth applications. Featuring 24x 10/100/1000Mbps RJ45 ports and 6x 1G/10G SFP+ uplinks, this Layer 3 switch delivers scalable connectivity, advanced QoS, and robust security for demanding environments.

Key Features & Benefits

High-Speed Networking – 24 Gigabit Ethernet ports + 6x 10G SFP+ slots for high-density access and ultra-fast uplinks.
Layer 3 Routing – Supports static routing, RIP, OSPF, and IPv4/IPv6 dual-stack for flexible network segmentation.
Enterprise-Grade Reliability – RERP ring protocol (30ms failover), LACP trunking, and optional dual power supplies for uninterrupted operation.
Advanced Security – 802.1X authentication, ACLs, DHCP snooping, and port isolation to prevent unauthorized access.
Smart Traffic Management – QoS prioritization (voice/video optimization) and storm control for stable performance.

Technical Specifications (Parameters Table)

Category	Specifications
Ports	24x 10/100/1000BASE-T, 6x 1G/10G SFP+ (Combo)
Switching Capacity	128 Gbps
Forwarding Rate	95.2 Mpps
Layer 3 Features	Static route, RIP, OSPF, IPv6
Redundancy	RERP, STP/RSTP/MSTP, LACP
Security	ACL, 802.1X, Port Security, DHCP Snooping
Management	Web, CLI, SNMPv3, SSH, RMON
Power Supply	AC 100-240V, 50/60Hz (Optional dual PSU)

Ideal Applications

Enterprise/Campus Networks – Reliable access/aggregation layer switching.
Data Centers – High-speed server connectivity with 10G uplinks.
IP Surveillance – Supports PoE+ (if PoE model) for IP cameras.

This Ruijie 24-port managed switch balances performance, scalability, and security, making it a cost-effective solution for SMBs and large enterprises. Backed by Ruijie’s warranty and support, it ensures long-term reliability.
